Description

File Name/Link

Modification Date

Notes

Command Line Interface (CLI) User Guide

PJM Command Line Interface

08/23/2023

User Guide for PJM Command Line Interface.

Command Line Interface (CLI)- Java 8+ Zip File

Command Line Interface - Java 8+

08/23/2023

PJM Command Line Interface Files.

Dart Browserless User Guide

Dart Browserless User Guide(PDF)

04/15/2024

User Guide for use of eDART with PJM Command Line Interface.

Description

Schema Diagram

Schema Document

.xsd

Example File

Modification Date

Notes

General

Company Names

Schema Diagram

Schema Document

xsd

Example File

Control Zones

Schema Diagram

Schema Document

xsd

Example File

12/21/2021

Updated XML Documents for eDART Browserless Refresh.

Public Files Listing

Schema Diagram

Schema Document

xsd

Example File

11/08/2024

List of files available for download from eDART for all users. These are files currently available on pjm.com.

Response

Schema Diagram

Schema Document

xsd

Example File

01/03/2022

Added Response to XML Documents.

Transmission Zones

Schema Diagram

Schema Document

xsd

Example File

12/21/2021

Updated XML Documents for eDART Browserless Refresh.

Generation

Generation Cause

Schema Diagram

Schema Document

xsd

Example File

05/25/2021

Updated XML Documents for eDART Browserless Refresh.

Generation Cause List by Generator

Schema Diagram

Schema Document

xsd

Example File

05/25/2021

Updated XML Documents for eDART Browserless Refresh.

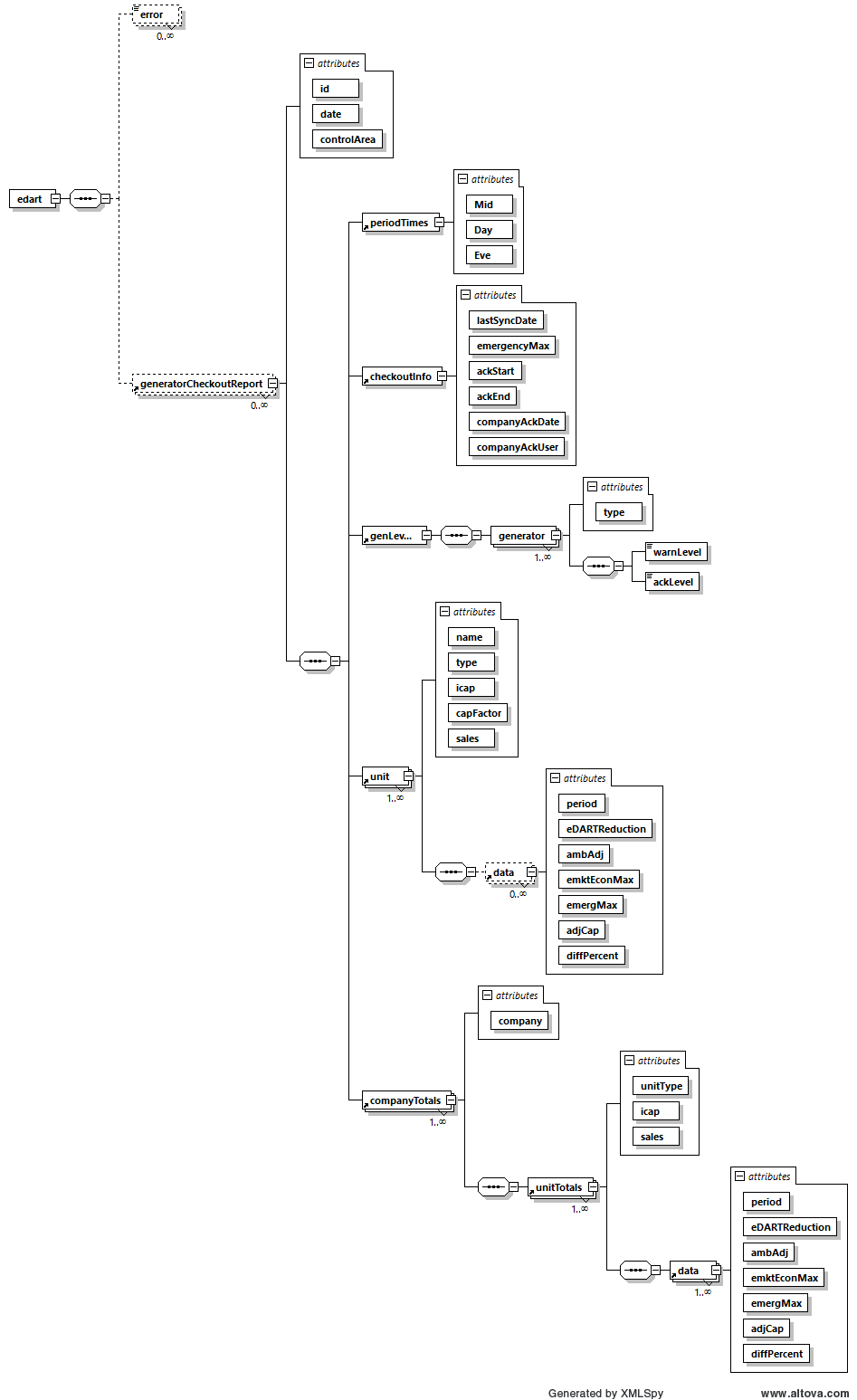

Generation Checkout

Schema Diagram

Schema Document

xsd

Example File

07/29/2024

Updated Sales to accept decimal values.

Generation Checkout Control Regions

Schema Diagram

Schema Document

xsd

Example File

05/25/2021

Updated XML Documents for eDART Browserless Refresh.

Generation Recalled

Schema Diagram

Schema Document

xsd

Example File

01/06/2022

Updated Example File.

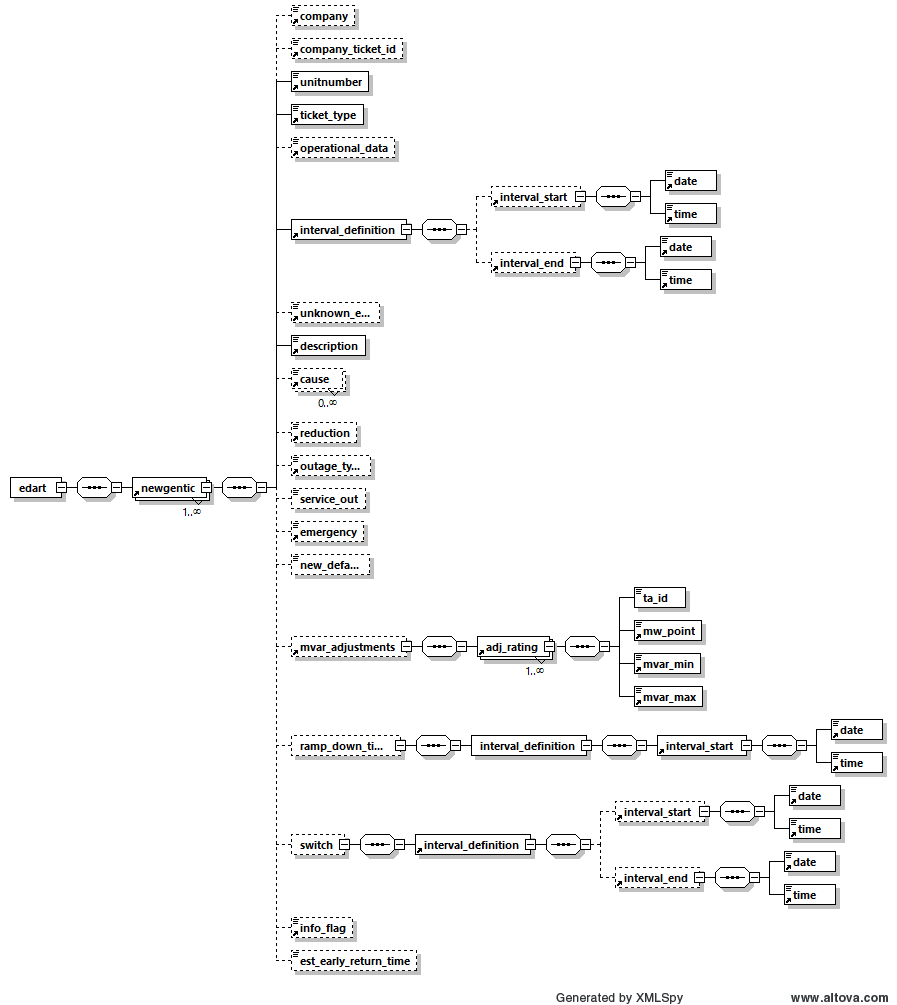

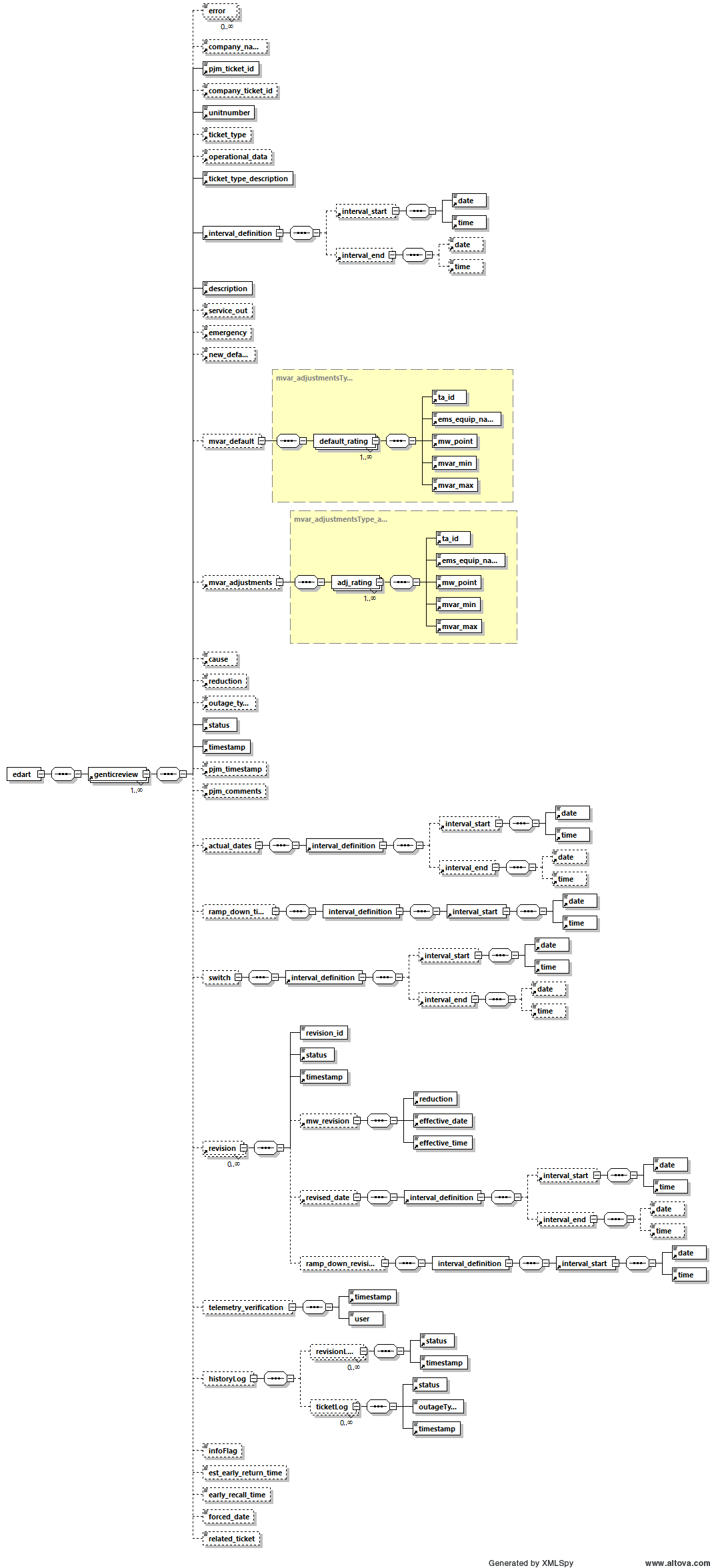

Generation Ticket Create

Schema Diagram

Schema Document

xsd

Example File

12/28/2021

Updated XML Documents for eDART Browserless Refresh.

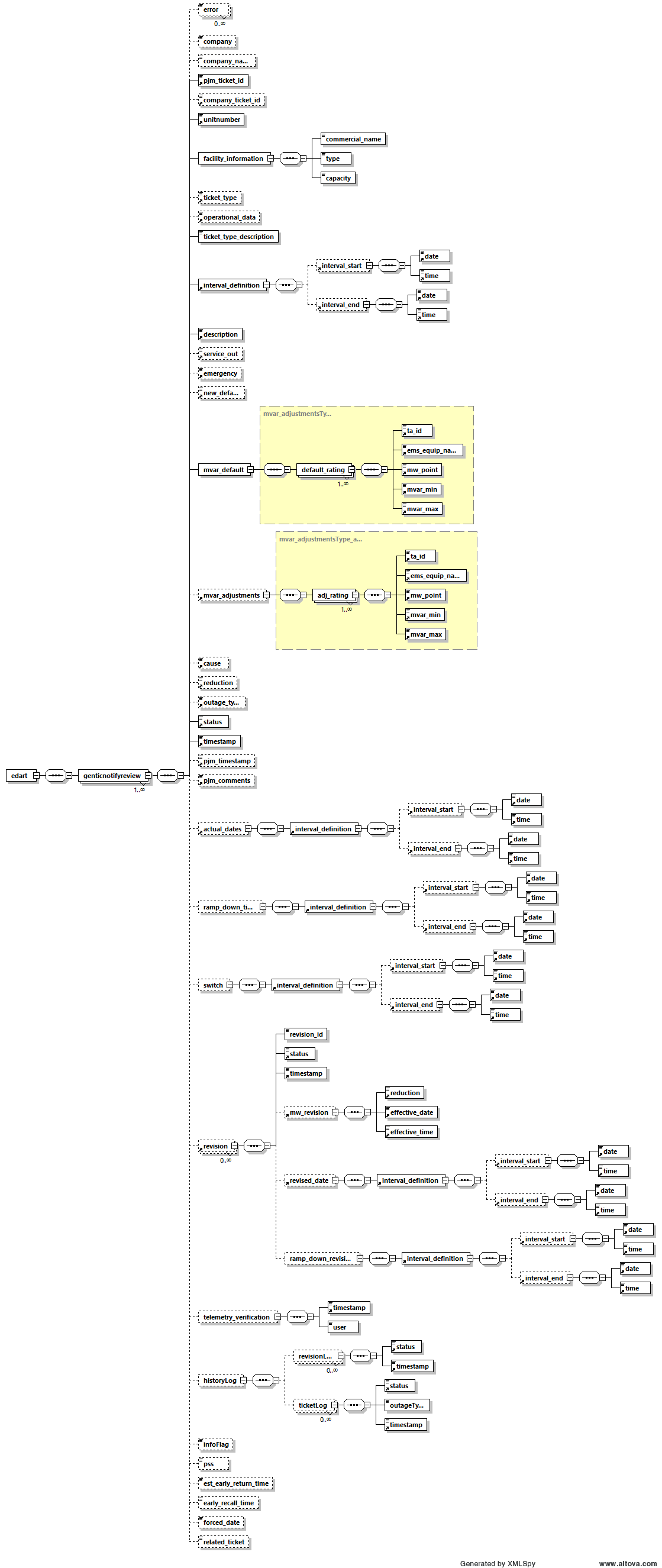

Generation Ticket Notify Review

Schema Diagram

Schema Document

xsd

Example File

12/21/2021

Updated XML Documents for eDART Browserless Refresh.

Generation Ticket Review

Schema Diagram

Schema Document

xsd

Example File

12/28/2021

Updated XML Documents for eDART Browserless Refresh.

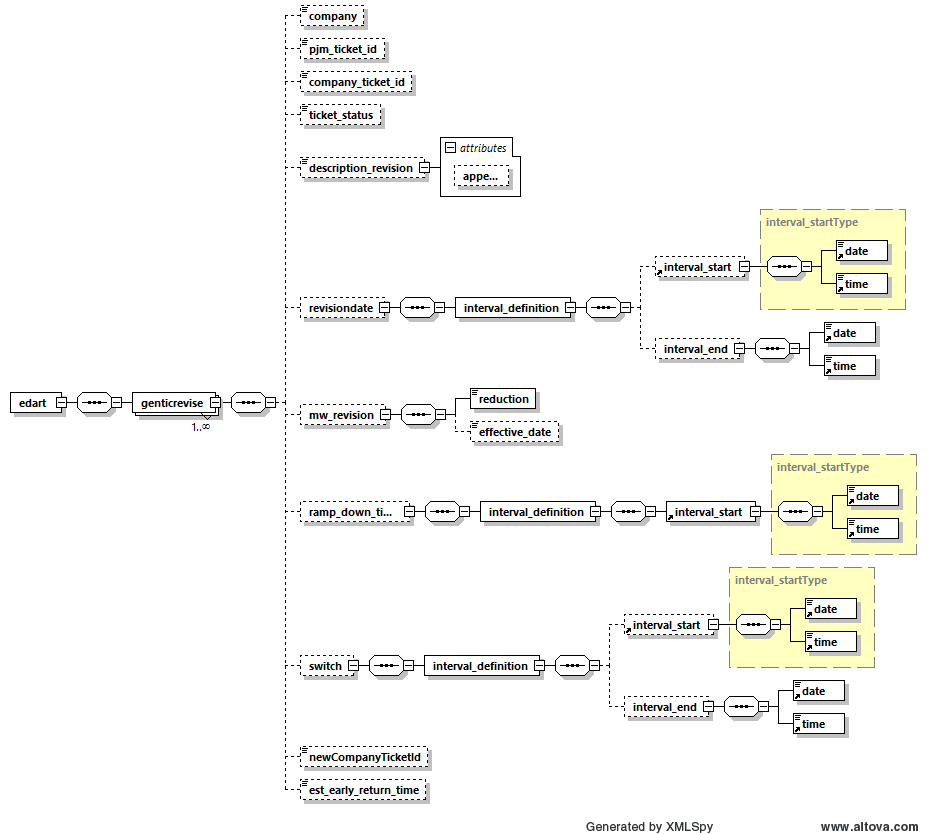

Generation Ticket Revise

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

Generator List

Schema Diagram

Schema Document

xsd

Example File

05/05/2020

Removed voltageControlPhilosophy.

Generator PSSE

Schema Diagram

Schema Document

xsd

Example File

12/16/2021

Updated Example File.

IRC

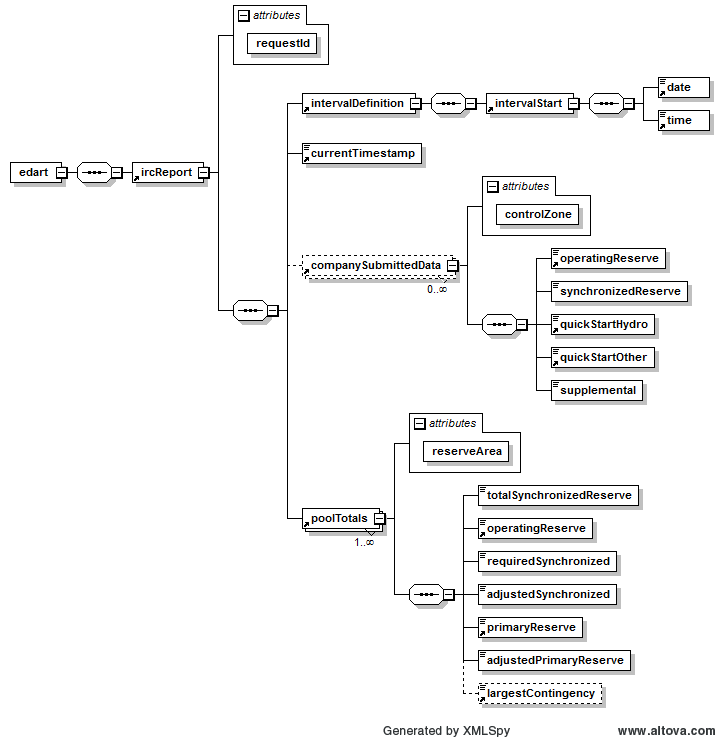

IRC by Date Download

Schema Diagram

See IRC Full Schema

See IRC Full xsd

Example File

01/03/2022

Updated Example File.

IRC Full Download

Schema Diagram

Schema Document

xsd

Example File

09/14/2022

Added New Reserve Areas.

IRC Pool Totals Download

Schema Diagram

See IRC Full Schema

See IRC Full xsd

Example File

01/03/2022

Updated Example File.

IRC Revise

Schema Diagram

See IRC Full Schema

See IRC Full xsd

Example File

01/03/2022

Updated Example File.

IRC Selfcheck Download

Schema Diagram

See IRC Full Schema

See IRC Full xsd

Example File

01/03/2022

Updated Example File.

Nuclear Bus Voltage Limits

Effective Limits

Schema Diagram

Schema Document

xsd

Example File

03/06/2023

Added XML Documents for eDART March 2023 Release.

Ticket Create

Schema Diagram

Schema Document

xsd

Example File

03/06/2023

Added XML Documents for eDART March 2023 Release.

Ticket Report

Schema Diagram

Schema Document

xsd

Example File

03/06/2023

Added XML Documents for eDART March 2023 Release.

Ticket Review

Schema Diagram

Schema Document

xsd

Example File

03/06/2023

Added XML Documents for eDART March 2023 Release.

Ticket Revise

Schema Diagram

Schema Document

xsd

Example File

03/06/2023

Added XML Documents for eDART March 2023 Release.

Unit Setup Report

Schema Diagram

Schema Document

xsd

Example File

03/06/2023

Added XML Documents for eDART March 2023 Release.

RRC

RRC By Date

Schema Diagram

Schema Document

xsd

Example File

RRC Equipment List

Schema Diagram

Schema Document

xsd

Example File

RRC Full

Schema Diagram

Schema Document

xsd

Example File

RRC Revise

Schema Diagram

Schema Document

xsd

Example File

RRC Revise Response

Schema Diagram

Schema Document

xsd

Example File

RRC Self Check

Schema Diagram

Schema Document

xsd

Example File

TERM

DLR Equipment Create

Schema Diagram

Schema Document

xsd

Example File

06/07/2022

Available with June 2022 eDART release.

DLR Equipment Report

Schema Diagram

Schema Document

xsd

Example File

06/07/2022

Available with June 2022 eDART release.

DLR Equipment Revise

Schema Diagram

Schema Document

xsd

Example File

06/07/2022

Available with June 2022 eDART release.

DLR Forecast Report

Schema Diagram

Schema Document

xsd

Example File

06/07/2022

Available with June 2022 eDART release.

DLR Forecast Ticket

Schema Diagram

Schema Document

xsd

Example File

06/07/2022

Available with June 2022 eDART release.

DLR Forecast Value

Schema Diagram

Schema Document

xsd

Example File

06/07/2022

Available with June 2022 eDART release.

TERM RXB Download

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

TERM RXB New Upload

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

TERM RXB Revise Upload

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

TERM Equipment

Schema Diagram

Schema Document

xsd

Example File

TERM Equipment Information

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

TERM Equipment Report

Schema Diagram

Schema Document

xsd

Example File

11/12/2021

Dynamic tag added with December 2021 release.

TERM Reason

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

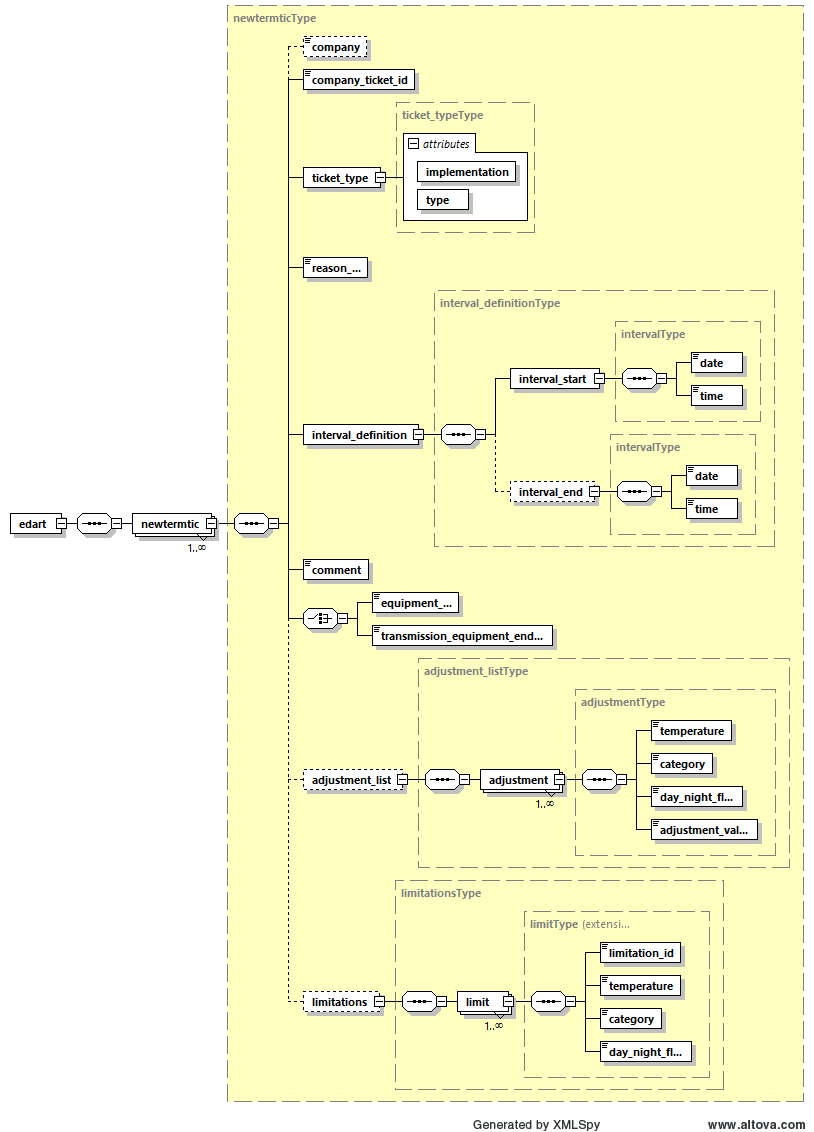

TERM Ticket Create

Schema Diagram

Schema Document

xsd

Example File

12/16/2021

December 2021 Release.

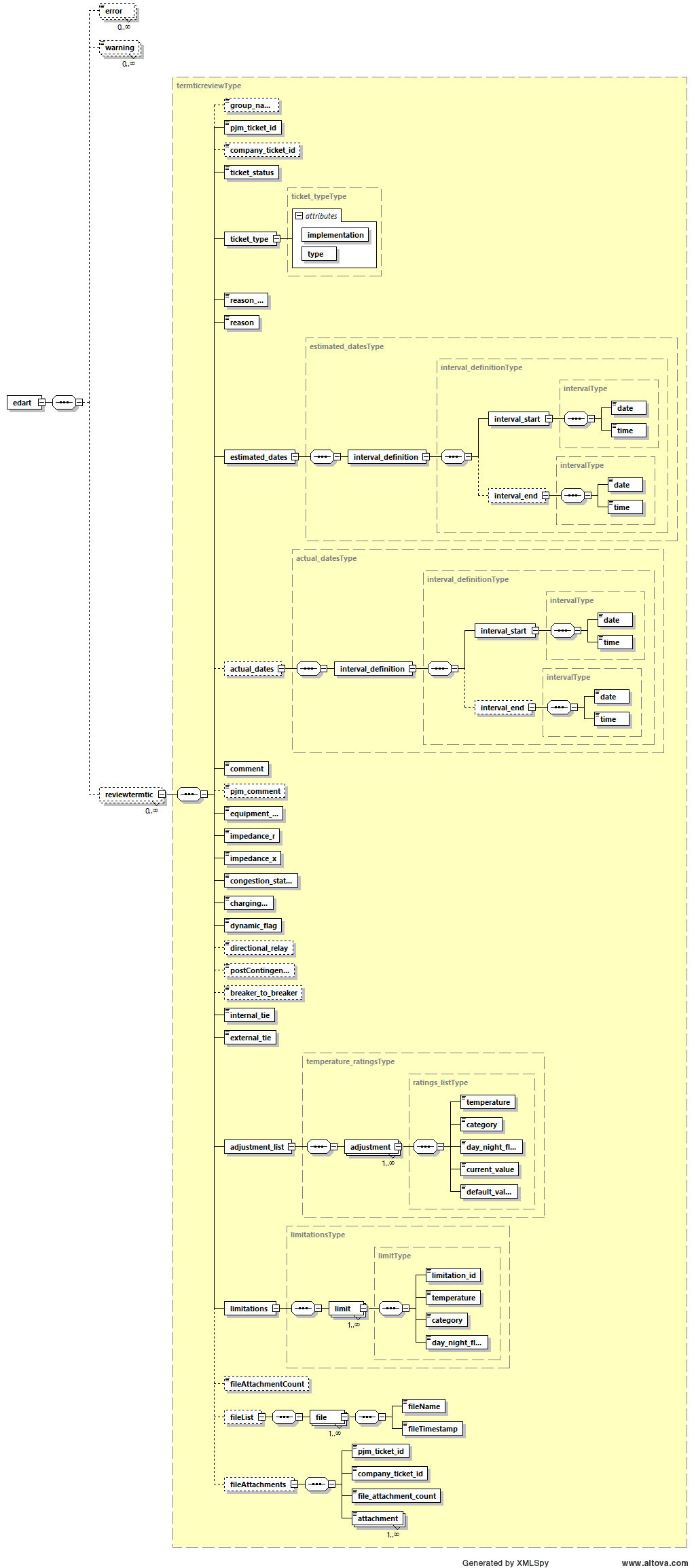

TERM Ticket Review

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

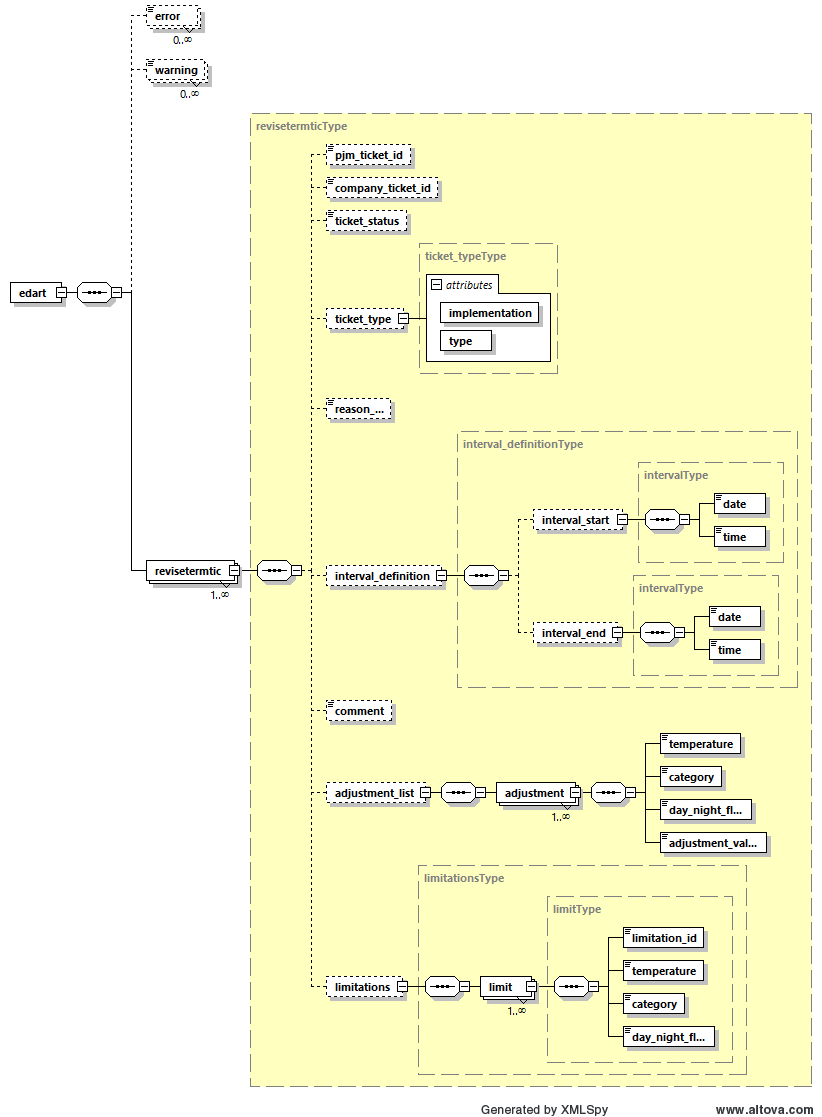

TERM Ticket Revise

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

FERC Order 881

AAR Exception Report - Download

Schema Diagram

Schema Document

xsd

Example File

11/08/2024

Report of TO-declared AAR Exception Transmission Facilities including the 'Nature of and Basis'.

AAR Exception Update - Upload

Schema Diagram

Schema Document

xsd

Example File

11/08/2024

Upload for TO to verify or update existing Transmission Facility AAR Exceptions including the 'Nature of and Basis'. [TO Only].

Emergency Duration Values - Download

Schema Diagram

Schema Document

xsd

Example File

12/19/2023

Report of all active emergency duration values for use in Facility Change Tickets.

Facility Change Tickets - Create

Schema Diagram

Schema Document

xsd

Example File

11/08/2024

Request to set Transmission Facility type as AAR, AAR Exception or DLR, providing an effective date for same. [TO Only].

Facility Change Tickets - Revise

See Facility Change Tickets - Create Diagram

See Facility Change Tickets - Create Schema

See Facility Change Tickets - Create xsd

Example File

11/08/2024

Request to set Transmission Facility type as AAR, AAR Exception or DLR, providing an effective date for same. [TO Only].

Facility Report - Download

Schema Diagram

Schema Document

xsd

Example File

11/08/2024

Download of Transmission Facility information, including reliability data. [TO Only].

Forecast Value Report - Download

Schema Diagram

Schema Document

xsd

Example File

11/08/2024

Report of forecasted Transmission Facility Ratings: hourly and monthly (seasonal).

Lookup Tables - Create

Schema Diagram

Schema Document

xsd

Example File

11/08/2024

Unique rating sets; includes conditional and exception ratings.

Lookup Tables - Review

See Lookup Tables - Create Diagram

See Lookup Tables - Create Schema

See Lookup Tables - Create xsd

Example File

11/08/2024

Unique rating sets; includes conditional and exception ratings.

Lookup Tables - Revise

See Lookup Tables - Create Diagram

See Lookup Tables - Create Schema

See Lookup Tables - Create xsd

Example File

11/08/2024

Unique rating sets; includes conditional and exception ratings.

Lookup Tables Reports - Download

See Lookup Tables - Create Diagram

See Lookup Tables - Create Schema

See Lookup Tables - Create xsd

Example File

11/08/2024

Unique rating sets; includes conditional and exception ratings.

Projected Conditional Tickets - Upload

Schema Diagram

Schema Document

xsd

Example File

11/08/2024

Ticket submitted to inform PJM when conditions from a lookup table will be in effect.

Real Time Ratings Report - Download

Schema Diagram

Schema Document

xsd

Example File

11/08/2024

Report of in-use Transmission Facility Ratings, including AAR (DLR & AAR facilities), AAR Exceptions, and conditional ratings; With option to request historic real-time ratings.

Temperature Set Details - Download

Schema Diagram

Schema Document

xsd

Example File

12/19/2023

Report of all active temperature sets for use in Lookup Table submissions.

Upcoming Facility Changes - Download

Schema Diagram

Schema Document

xsd

Example File

11/08/2024

Report of future Transmission Facility Rating Methodology type changes from/to AAR Exception, AAR or DLR.

Zonal Forecasts Hourly - Upload

Schema Diagram

Schema Document

xsd

Example File

11/08/2024

Zonal forecast of AAR ambient condition (Temp Set reflecting temperature and solar condition) hourly.

Zonal Forecasts Seasonal - Upload

See Zonal Forecasts Hourly Diagram

See Zonal Forecasts Hourly Schema

See Zonal Forecasts Hourly xsd

Example File

11/08/2024

Zonal forecast of AAR ambient condition (Temp Set reflecting temperature and solar condition) monthly (seasonal).

Zonal Report - Download

Schema Diagram

Schema Document

xsd

Example File

11/08/2024

Report of weather station definitions per TO SCADA Zone.

Transmission

EMS Outage

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

NDA Agreement

Schema Diagram

Schema Document

xsd

Example File

Upload for model sharing NDA.

NERC Forecast

Schema Diagram

Schema Document

xsd

Example File

NERC TADS Report Codes

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

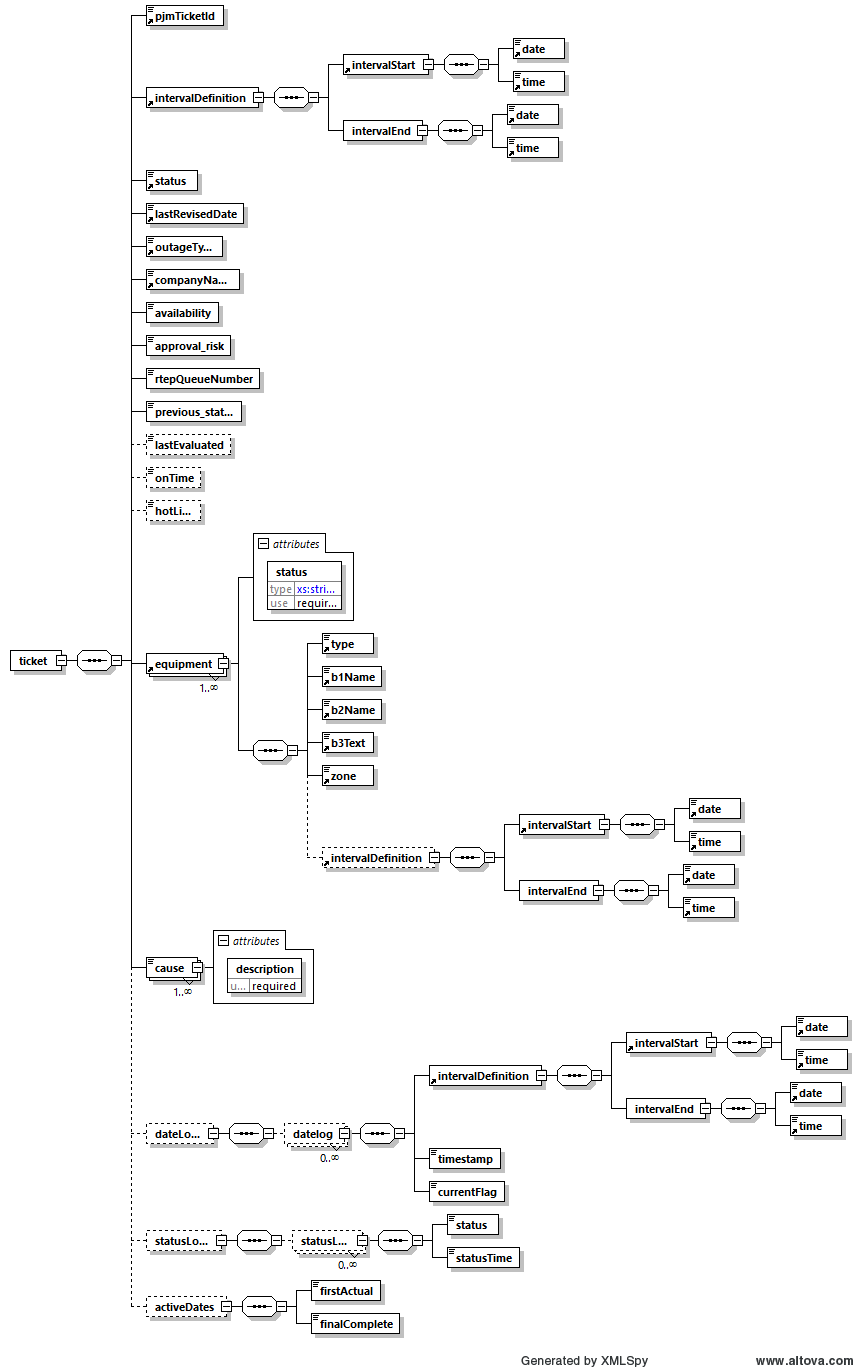

TOIMWG Download

Schema Diagram

Schema Document

xsd

Example File

4/15/2022

The approval_risk element was modified to “string”, with 3 valid values: “true”, “false”, and “”.

Conflict Group Scenario Download

Schema Diagram

Schema Document

xsd

Example File

01/06/2022

Updated Example File.

Conflict Primary Facility Download

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

Genoff Scenario Download

Schema Diagram

Schema Document

xsd

Example File

Equipment

Schema Diagram

Schema Document

xsd

Example File

Tariff Equipment Details

Schema Diagram

Schema Document

xsd

Example File

Tariff Facilities

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

Tier

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

Transmission PSSE

Schema Diagram

Schema Document

xsd

Example File

01/06/2022

Updated Example File.

Transmission Causes

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

Transmission Cut-In Report

Schema Diagram

Schema Document

xsd

Example File

07/30/2020

List of Cut-In Transmission Tickets with Cut-In task information.

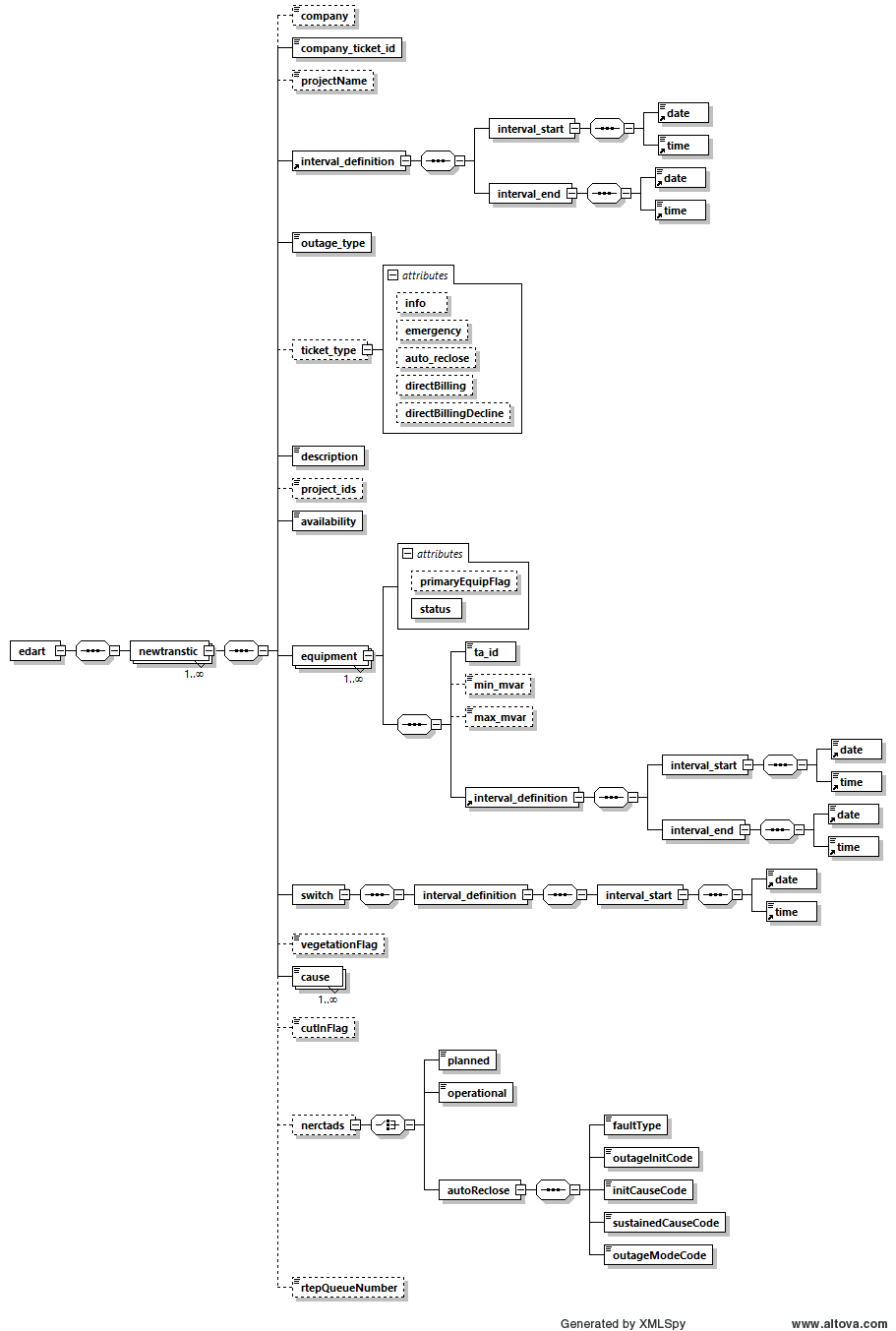

Transmission Ticket Create

Schema Diagram

Schema Document

xsd

Example File

03/31/2023

Removed equipment_default and defaultStatusChangeOnly tags during eDART release in March 2023.

Transmission Ticket Impacts

Schema Diagram

Schema Document

xsd

Example File

Transmission Impacts Download.

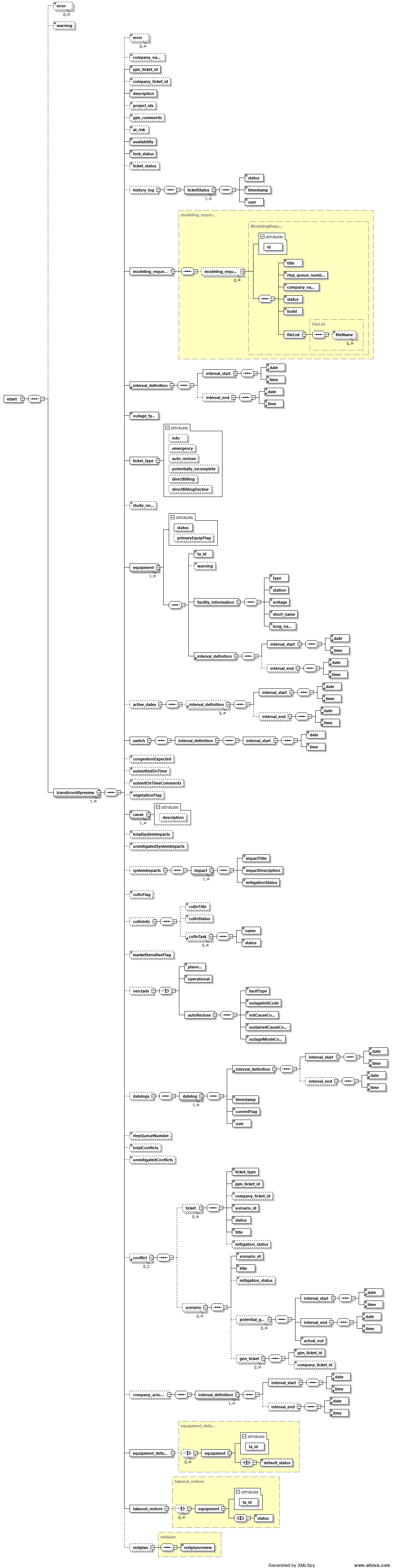

Transmission Ticket Notify Review

Schema Diagram

Schema Document

xsd

Example File

5/25/2021

Updated XML Documents for eDART Browserless Refresh.

Transmission Ticket Projects

Schema Diagram

Schema Document

xsd

Example File

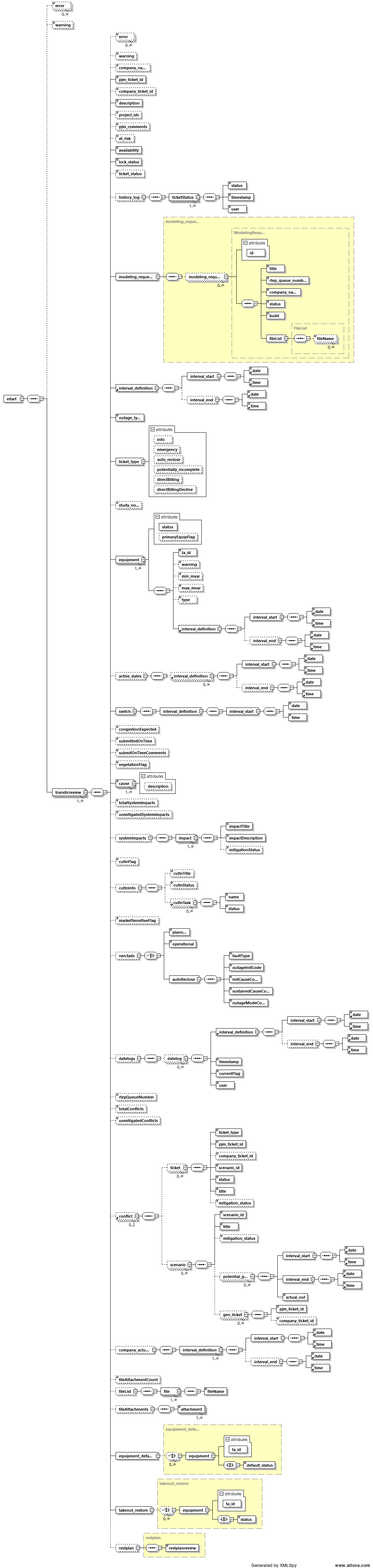

Transmission Ticket Review

Schema Diagram

Schema Document

xsd

Example File

05/05/2021

Updated XML Documents for eDART Browserless Refresh.

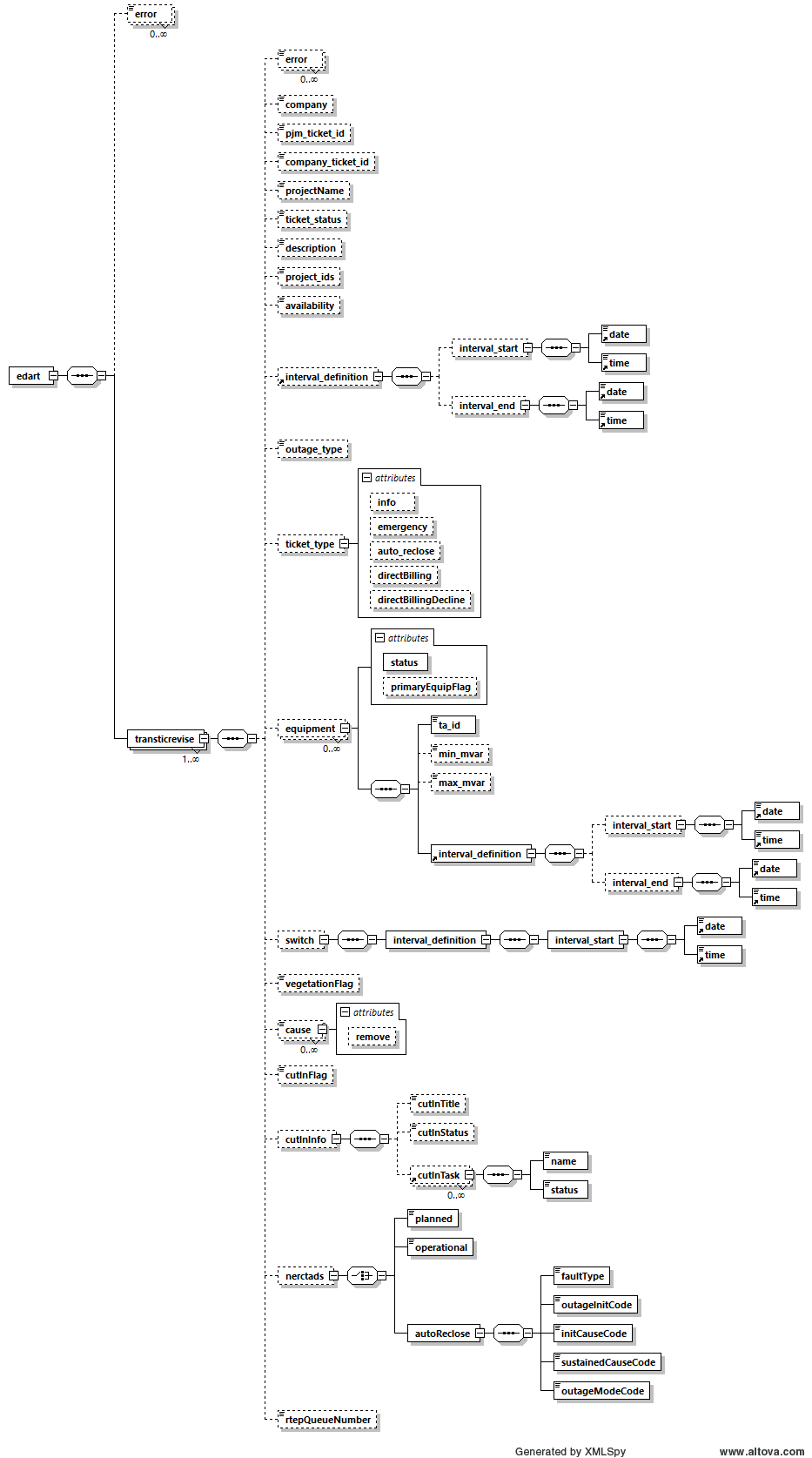

Transmission Ticket Revise

Schema Diagram

Schema Document

xsd

Example File

03/31/2023

Removed equipment_default and defaultStatusChangeOnly tags during eDART release in March 2023.

Voltage Schedule

Schema Diagram

Schema Document

xsd

Example File

Name

Description

Modification Date

Notes

General

Control Zones Download

Example of a Control Download XML file.

12/23/2021

Transmission Zones Download

Example of a Transmission Zones Download XML file.

12/23/2021

Generation

Generation Ticket Create - MW

Example of a New MW Generator Ticket XML file.

01/03/2022

Generation Ticket Create - Voltage Regulator

Example of a Voltage Regulator Generator Ticket XML file.

01/03/2022

Generation Ticket Create - MVAR

Example of a Voltage Regulator Generator Ticket XML file.

01/03/2022

Generation Ticket Create - Governor

Example of a Governor Generator Ticket XML file.

01/03/2022

Generation Ticket Create - MVAR Test

Example of a Voltage Regulator Generator Ticket XML file.

01/03/2022

Generation Ticket Create - PSS

Example of a Governor Generator Ticket XML file.

01/03/2022

Generator Ticket Revise

Example of a Revise Generator Reactive (MVAR,Voltage Regulator or Governor) Ticket XML file.

01/03/2022

Generation Ticket Cancel

Example of a Generation Ticket Cancel XML File.

01/03/2022

Generation Ticket with est_early_return time element

Example of a New MW Generator Ticket with est_early_return-time XML file.

12/23/2021

Generator Checkout Control Areas Download

Example of a Generator Checkout Areas Download XML file.

12/23/2021

List of Causes for Generator Outages

Example of a List of Causes for Generator Outages XML file.

12/23/2021

List of Units for Generator Outages

Example of a List of Units for Generator Outages XML file.

12/23/2021

TERM

TERM Equipment Info Download

Example of a Example of a TERM Equipment Info Download XML file.

01/03/2022

TERM Equipment Report

Example of a TERM Equipment Report.

01/03/2022

TERM Limitations List Download

Example of a Resource Limitation Upload XML file.

12/23/2021

TERM Reason for Change Download

Example of a TERM Reason for Change Download XML file.

01/03/2022

Transmission

EMS Outage Download

Example of an EMS Outage XML file.

NERCTADS Report Codes

Example of a download showing NERCTADS Report Codes.

12/28/2021

Tier

Example of a download showing equipment and assigned tier level.

12/28/2021

Transmission Cause Removal

Example of a Transmission Cause Removal XML file.

Transmission Causes

Example of a list of Transmission Causes XML file.

12/28/2021

Transmission Ticket Cancel

Example of Transmission Ticket Cancel XML file.

Transmission Ticket Create with SVC

Example of a Ticket file with equipment type GEN.

01/03/2022

Transmission Ticket Review with date logs

Example of a Review Download Transmission Ticket file with date logs.

01/03/2022

Transmission Ticket Review with system impacts

Example of a Review Download Transmission Ticket file with impacts.

01/03/2022

Transtic NERCTADS Revise TADS message

Example of a Transtic NERCTADS Revise TADS message XML file.

01/03/2022

Transtic NERCTADS upload with operational message

Example of a Transtic NERCTADS upload with operational message XML file.

01/03/2022

Transtic NERCTADS upload with planned message

Example of a Transtic NERCTADS upload with planned message XML file.

01/03/2022
